This page lists the steps on utilizing Home Energy Meter Gen5 with Popp Hub (Z-Wave.me) and forms part of the larger Home Energy Meter Gen5 user guide.
Setup your Home Energy Meter Gen5 ZW095
1. Open the Login of your Popphub http://find.popp.eu or http://YOUIPADRESS:8083
2. Add Your PoppHub ID/Username and Password and Login

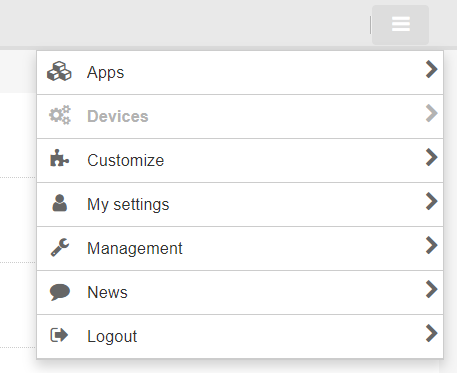

3. Open the menu (top right) and select devices
4. Press Add new (on the right side) by Z-Wave
5. Choose your Device or Press Add new Z-Wave Devices and identify it automatically

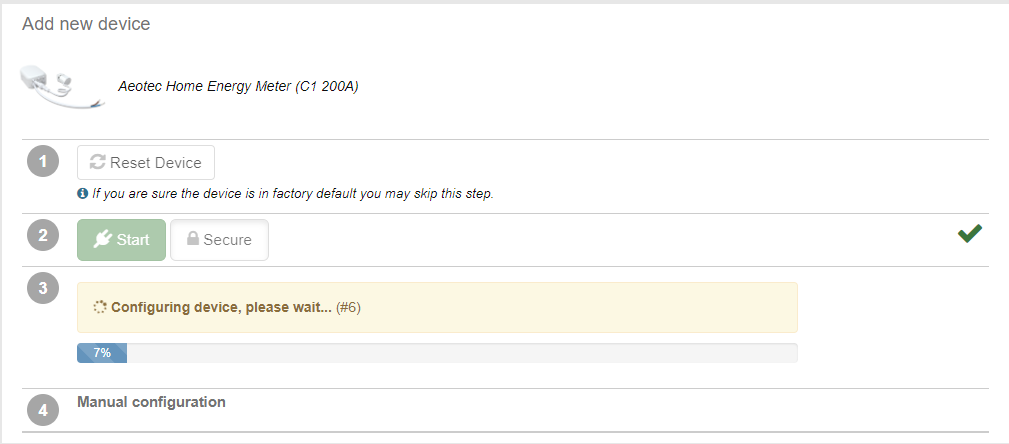

6 Following the Steps
1. Reset Device (Exclusion)
Press the button on the device once
2. Inclusion Press the green Start button
Press the button on the device once
7. After the inclusion, you can configure your device
Troubleshooting:
The interview is not complete
It is possible that there are problems to get the interview complete with single variants.
The following steps explain how to solve this problem:
1. Open the Expert UI http://YOURPOPPHUPIP:8083/expert
2. Choose Device and Status
3. Select your device
4. Press View Interview result
You now see that the AssociationGroupInformation has not been retrieved.
Sometimes even the meter is not complete
5. Please copy the following line into your browser line and adjust the marked values.
http://IP:8083/ZWave.zway/Run/devices[XXX].instances[YY].commandClasses[89].data.interviewDone.value=true
a. Change IP-Adress (IP)

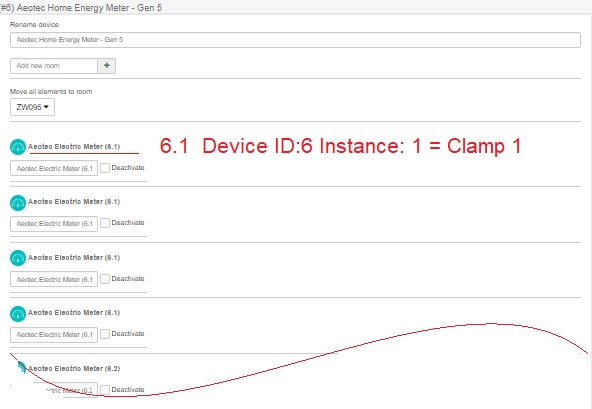

b. Change Device ID (XXX)
c. Change device Instance (YY)
d. Check the command class
e. Press Enter
Note:
CommandClass 89 = AssociationGroupInformation
CommandClass 50 = Meter
Example:
(clamp 1)
http://192.168.10.229:8083/ZWave.zway/Run/devices[6].instances[1].commandClasses[89].data.interviewDone.value=true
(clamp 2)
http://192.168.10.229:8083/ZWave.zway/Run/devices[6].instances[2].commandClasses[89].data.interviewDone.value=true
(clamp 3)
http://192.168.10.229:8083/ZWave.zway/Run/devices[6].instances[3].commandClasses[89].data.interviewDone.value=true
f. It is confirmed by "true".
6. Repeat this for all missing instances.
7. The interview must be completed.
