This page provides a solution to use 10 Year Smoke Detector with Siren with Fibaro HC3 and forms a part of the larger 10 Year Smoke Detector and Siren user guide.
To use the siren in HomeCenter 3, please download the Quick App and integrate it into your HomeCenter 3.
SmokeSenor Siren Quick APP Download
1. Login in your HomeCenter 3
2. Add the smoke detector to the HomeCenter 3
2.1. Open menu with gearwheel
2.2. Change to Devices.
2.3. Press the blue + button.
2.4. Choose Z-Wave Device.
2.5. Check the box
Device is located far from HomeCenter
Add in security mode if device supports it
2.6. Press the button Start adding.
2.7. Press the button on the back of the smoke detector once.

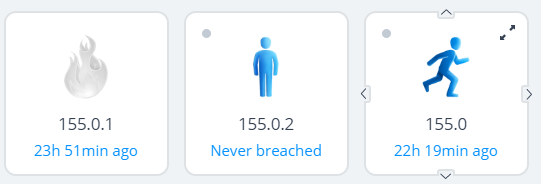

3 devices are created.
- Fire Alarm
- Tamper (Motion) - Does not work
- Siren Status (Motion)
The QuickApp supplements the device with the additional control of the siren.

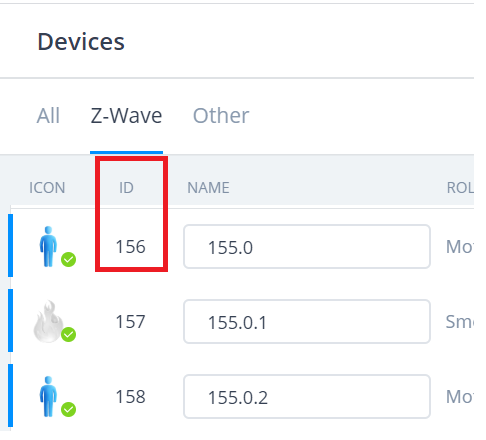

2.8. Find out the ID of the smoke detector and write it down
3. Upload QuickApp
3.1. Open menu with gearwheel.
3.2. Change to Devices.
3.3. Press the blue + button.
3.4. Choose Other Device.
3.5. Choose Upload file.
3.6. Choose downloaded file and press open.
A new device is created.
4. Setup Quick App
4.1. Open the setting by pressing the right arrow.

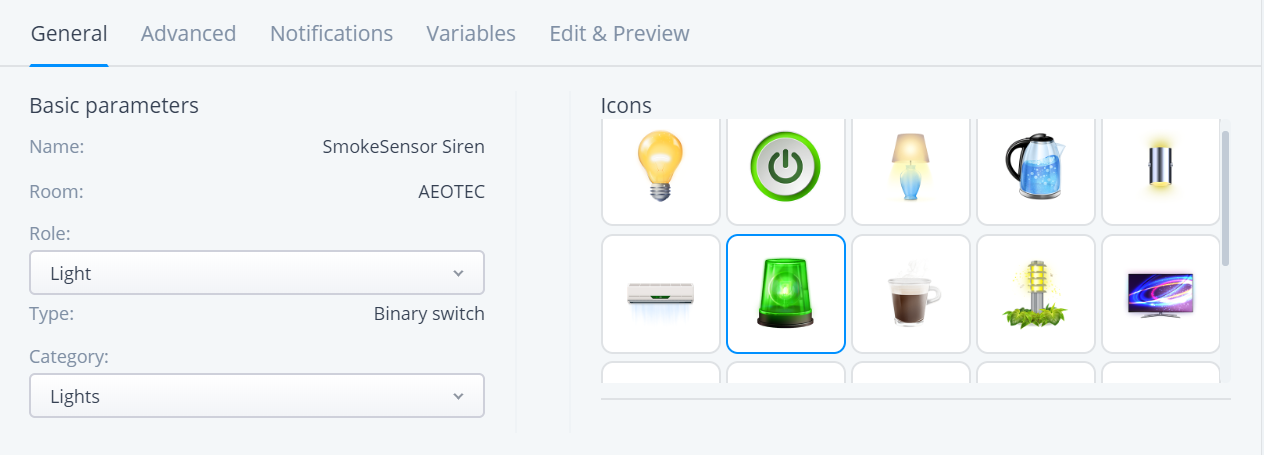

4.2. Choose a Icon and press save.
4.3. Change to Variables.

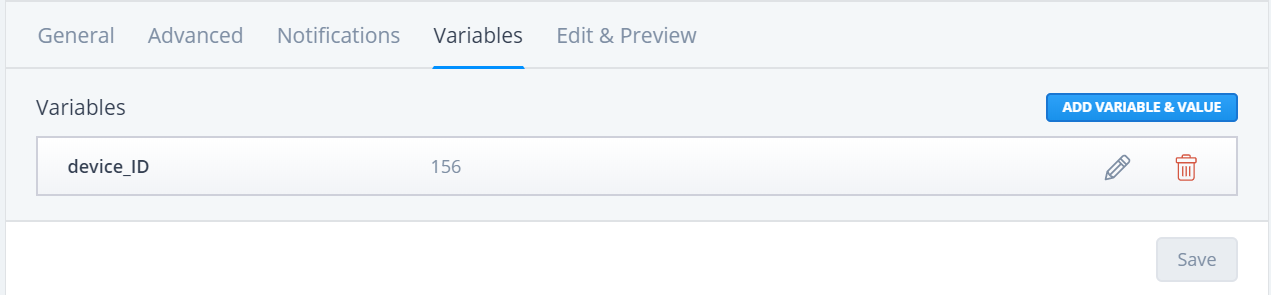

4.4. Edit the variable "device_ID" by pressing the pen on the right side.
4.4.1. Enter the ID of the smoke detector and press OK.
4.4.2. Press Save button.

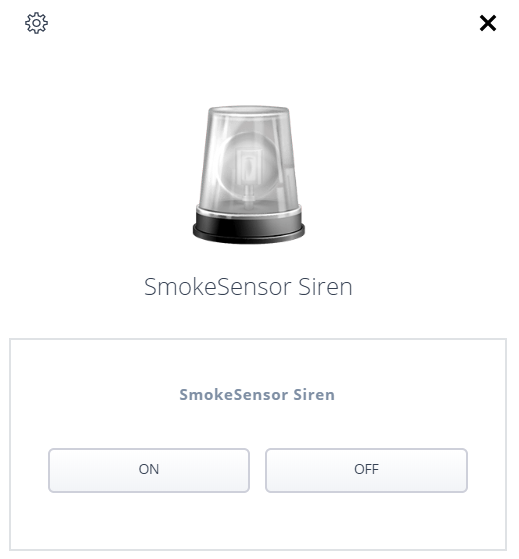

5. Change to Dashboard and find the new device.
