This article describes the setup of the Z-Stick Gen5+ in Home Assistant with ZWaveJS to MQTT and form part of the larger Z-Stick Gen5+ user guide.


This guide assumes that you have a fresh install of Home Assistant and have not yet installed Z-WaveJS, if you already have ZWaveJS Installed, that is perfectly fine, you will be able to switch between the official Z-WaveJS integration or Z-WaveJS to MQTT as you like.


Requirements.


Hardware Recommendations.

  • Raspberry Pi 3 or later
  • microSD card (at least 32GB and class 2; recommended 128GB SanDisk MAX Endurance for future proof or camera recordings)


Versions used in this guide.

  • Home Assistant OS version 5.12
  • Z-Wave JS to MQTT version 0.8.0
  • Supervisor version stable supervisor-2021.03.6


If you're installing Z-Wave JS to MQTT on a fresh installation.


These steps assume that you have a fresh install of Home Assistant and have not yet installed Z-WaveJS to MQTT. If you've already installed Z-Wave JS default integration and want to install MQTT, please follow the section "Change to Z-Wave JS to MQTT if you've already installed Z-Wave JS" at the bottom of this article.


If you have a fresh install, you may follow the steps below to fully install Z-Wave JS to MQTT.


Video



Software Steps
  1. Click Supervisor
  2. Click Add-on Store
  3. Search for "ZWave"
  4. Click Z-Wave JS to MQTT
  5. Click Install, then wait about 2 to 3 minutes for the installation to complete
  6. Click Start, takes about 24 seconds.
  7. Wait 1 minute for HASS to boot up Z-Wave JS to MQTT
  8. Click "Open Web UI"
  9. Click Menu (hamburger icon) -> Settings
  10. Click Zwave
  11. Click Serial port and select /dev/ttyACM0
  12. Next to Network Key, click the refresh button to add a random security key.
  13. Click Save
  14. Click 4 box icon, and see if the driver boots up properly.
  15. Click Supervisor
  16. Click Z-Wave JS to MQTT
  17. Click Documentation
  18. Copy "ws://a0d7b954-zwavejs2mqtt:3000"
  19. Click Configuration
  20. Click Integrations
  21. Click + Add Integrations

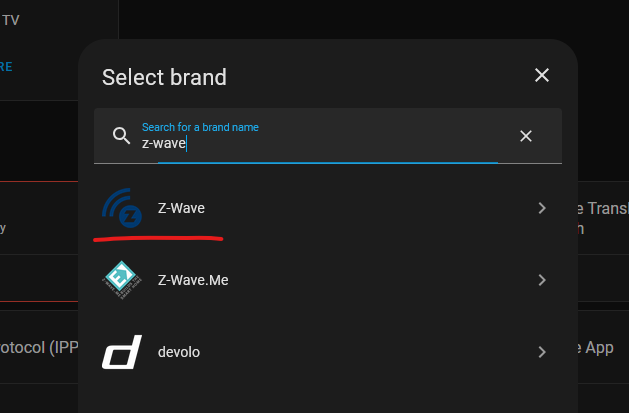

  22. Search ZWave
  23. Click Z-Wave JS
  24. Uncheck "Use the Z-Wave JS Supervisor add-on"
  25. Click Submit
  26. Paste "ws://a0d7b954-zwavejs2mqtt:3000"
  27. Click Submit
  28. Set your devices to the areas they are installed in, then click Finish


Change to Z-Wave JS to MQTT if you've already installed Z-Wave JS.


You may change from Z-Wave JS over to Z-Wave JS to MQTT but will require a bit of extra setup to finalize it. Once you have both Z-WaveJS default integration installed and MQTT, you can swap between MQTT and the original Z-WaveJS to MQTT integrations as you like.


You can follow the steps below to change from Z-Wave JS -> Z-Wave JS to MQTT.

  1. Go to Configuration -> Integrations
  2. Under Z-WaveJS click on the More Options icon (3 dot) then select Disable -> OK
  3. Click on Supervisor -> Z-Wave JS -> STOP
  4. Wait a moment for Z-Wave JS to stop, once that stops loading, click on the back arrow
  5. If you haven't installed Z-Wave JS to MQTT:
    1. Click on Add-on Store tab
    2. Find Z-Wave JS to MQTT and Install this
    3. Now click INSTALL, give it about 2-3 minutes to finish the installation.
    4. Click START, then wait about 10 seconds before continuing these steps.
    5. When ready, click on OPEN WEB UI
    6. Click Menu (hamburger icon) -> Settings
    7. Click Zwave to expand it
    8. Click Serial port and select /dev/ttyACM0
    9. Next to Network Key, add the original network key you used in the original ZWaveJS add-on, if you didn't previously have a network key, go ahead and press the Refresh button to randomly generate a key.
    10. Click Save
  6. Go to Configuration -> Integrations
  7. At the top right, you'll notice "1 disabled" click on SHOW. (if you have more unenabled integrations, you may have more than 1 disabled option, we only care about Z-Wave JS here).
  8. Click ENABLE on Z-Wave JS and it should connect automatically.
  9. You may need to reboot your Home Assistant to finalize the changes.
